Some Elements of Quantum Informatics

Some Elements of Quantum Informatics

The development of experimental methods for controlling individual quantum systems gave rise to an unusual new field of science – quantum informatics. Individual atoms, nitrogen vacancies, and single photons can act as logical cells, but they obey specific quantum logic. As a result, it is possible to create uncomputable systems capable of computing problems that cannot be computed by using standard computers. The synthesis of informatics and quantum physics is the basis for the generation of new technologies of information transfer and encoding – quantum cryptography, which allows creating an absolutely protected channel of data transfer

The study of individual quantum systems, which became possible owing to the development and improvement of fine experimental methods, is a principally new and promising approach to the research of the nature. Experiments with individual ions and neutral atoms interacting with individual photons were awarded with the Nobel Prize in physics in 2012.

Yurii Ivanovich Manin – Russian mathematician, Corresponding Member of RAS, one of the founders of quantum informatics.
From 1960 to 1992, he worked in the Department of Algebra of the Steklov Mathematical Institute of the Acade­my of Sciences of the USSR. From 2002 till now, he is a professor of the Northwest University (USA). Bro­thers Strugatskie used his character as a prototype of the mathematician Vecherovskii in their book entitled “A billion of years before the doomsday.”
Credit: Archives of the Mathematisches Forschungsinstitut Oberwolfach

The quantum character of such objects is manifested as follows: these objects possess a discrete set of possible states, which can be “switched” by affecting them with electromagnetic radiation. Actually, they can act as a kind of logical elements, which can form a basis for creating a computational system.

Computing uncomputable

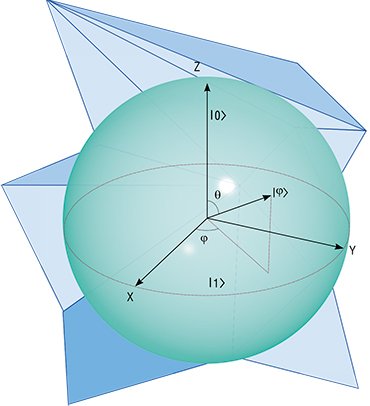

The qubit or the element of the quantum computer is a quantum mechanics object possessing two possible states. For instance, it can be an atom in a magnetic field with two possible directions of the intrinsic magnetic moment (spin). In the quantum case, there are no intermediate directions of the spin: the measurement always shows the spin, which is directed either upward or downward, depending on the state. However, the quantum object can also be in a special state called a superposition, which is the sum of the ground states. In this case, the measurement can show both the upward-directed spin (|0〉), and the downward-directed spin  (|1〉) –  with a certain probability. The Bloch sphere is a convenient method for illustrating the quantum states and their superposition. The superposition of two states can also be written in the form: |Ψ₁〉=cosθ|0〉+eⁱᵠ sinθ|1〉 Graphically, such a state of the qubit can be shown as a point on the Bloch sphere. The point position is defined by the angles θ and ψ Why do we need quantum computers? It could seem that conventional computational systems are sufficiently powerful and the computation velocity can be increased by thousands of times owing to parallel computation methods.

Nevertheless, there are some problems that cannot be solved by the classical computers within reasonable times. First of all, these are all exact (nonempirical) quantum mechanics computations of atoms and molecules: if a molecule of interest for us contains N electrons, then the time necessary for sequential computations is proportional to a certain number raised to the power of N and becomes greater than the Universe existence period already for several dozens of electrons. These difficulties were discussed in 1981 by Richard Feynman in his lecture entitled “Simulating physics with computers.”

However, back in 1980, Yurii Manin in his pioneering publication entitled Computable and Uncomputable (Manin, 1980) put forward an idea of creating “quantum automata” for computing the process of unfolding of the DNA double helix: it was proposed to use a system possessing the quantum rather than classical properties for simulating quantum mechanics phenomena.

At the time when the papers of Manin and Feynman were published, the possibility of using quantum objects in computers was purely hypothetical. However, owing to the development of experimental methods, there appeared recent engineering prospects of creating computational systems that utilize the quantum properties of microscopic objects. Naturally, this idea arouses a tremendous interest of the scientific community.

It seems to be zero, but it is a little bit of unity as well

Usual computers perform mathematical operations over numbers presented in a binary form, i.e., as a sequence of zeroes and unities. The binary system is convenient from the viewpoint of hardware implementation: the memory cells where these numbers are stored should have only two states (yes/no): the voltage is or is not supplied, there is or there is no magnetization, etc. The binary computation process reduces to a sequence of operations over zeroes and unities or, actually, to changes in the states of the memory cells and registers containing the numbers in accordance with certain rules.

A quantum computer, like the classical computer, can be constructed on the basis of the binary calculus. Some microscopic objects displaying quantum properties possess two states, which can be used for encoding zeroes and unities.

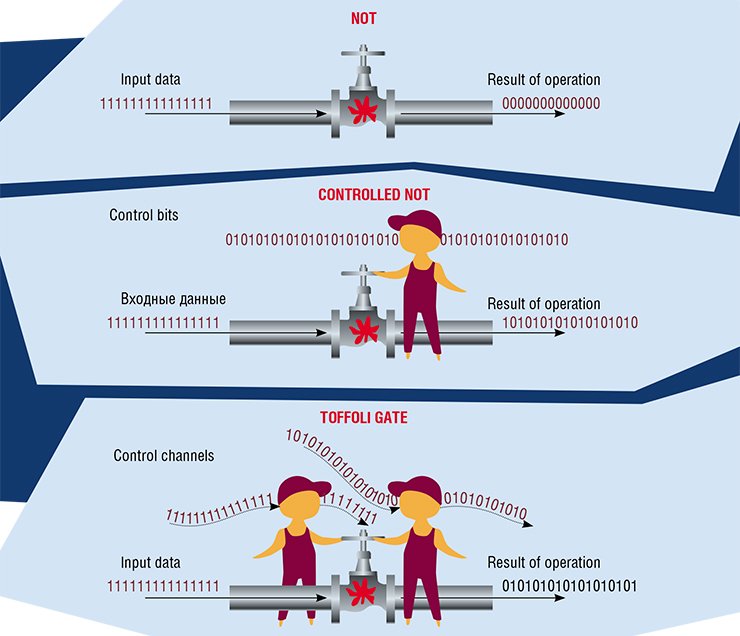

A computational system can be constructed by using several types of logical elements, i. e., the so-called gates. The simplest examples are NOT gates, which invert the input value by turning a zero to a unity and vice versa. The results of operation of controlled NOT (CNOT) is again inversion of the input data, but only if the control bit is equal to unity. The Toffoli gate is similar to the controlled NOT gate, but it has two control channels. An important feature of the Toffoli gate is data reversibility: the initial data can be recovered from the final data

For instance, it could be an atom possessing an intrinsic magnetic moment (spin). Being placed into a magnetic field, such an atom can have two orientations of the spin: along the field and opposite to the field.

However, in contrast to the usual memory cell, which contains either a zero or a unity, the quantum object can be in a special state called a superposition. In this case, the measurement of the atom spin orientation in a magnetic field can yield both an upward-directed spin and a downward-directed spin. If such an object is used as a memory cell, the readout of information from this object will yield a zero with a certain probability or a unity with a certain probability.

Moreover, quantum memory cells, which are conventionally called qubits, can interact with each other and can be in a common (collective) quantum state. In this case, the state of several cells can be changed almost instantaneously by affecting only one of them. It is this collective behavior of interacting qubits (quantum register) that allows solving those computational problems that cannot be solved on usual computers.

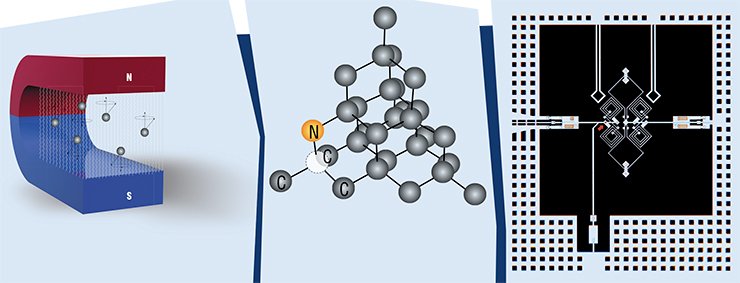

Cubits can be fabricated on the basis of atom nuclei. Atomic nuclei possess an intrinsic magnetic moment (spin). In a magnetic field, the spin begins to precess around the field direction, but it retains a predominant orientation: upwards or downwards. Two possible directions of the spin correspond to two states encoding binary information (Left). If two neighboring carbon atoms are removed from the diamond structure and a nitrogen atom is placed instead of one carbon atoms, a nitrogen vacancy is formed (the so-called NV-center), which has an intrinsic magnetic moment owing to the lone electron of the nitrogen atom has an intrinsic magnetic moment. By using the spin state of such a vacancy, it is possible to encode binary information. A system of closely located vacancies can play the role of a quantum register (center). By using superconducting electric circuits, it is possible to create an “artificial atom,” i.e., the Josephson junction at the circuit center possesses quantum states and it can be used as a basis for creating a qubit (computational cell of the quantum computer), (on right). Courtesy Raymond Simmonds/National Institute of Standards and Technology (NIST)

The most important requirements to the quantum computer as a physical system are the possibility of controlling the state of each individual qubit and complete isolation from the ambient medium. The qubit is an atomic-scale object; for the qubit to remember its state for a sufficiently long time, it should be isolated from external actions or, in other words, its state should retain coherence. In any case, the time needed for quantum superpositions to fail should be large, at least, it should be greater than the time needed for one quantum logical operation to be performed by a factor of 10⁴.

For real computations, the qubits should be united into a quantum register. Individual qubits in the register should be discernable and controllable from outside. The qubits should have exactly two levels and should not pass spontaneously to a third level. Moreover, there should be a possibility of scaling the quantum register, i.e., adding new qubits if necessary. Interaction of qubits with each other should be controlled. It is the interaction of qubits, its form and characteristics that determine which logical operations can be performed by the quantum register.

The final state of the register should also be measured sufficiently rapidly. An important factor is the efficiency of this measurement: it is necessary to readout information from a microscopic object of an atomic size.

Photon qubits

Today, various physical systems are studied for the implementation of quantum computations (Ladd et al., 2010). For instance, the photon polarization direction, which is practically not prone to decoherence, can be used as the qubit states. Logical operations with the use of photons can be performed by using plates made of birefringent materials rotating the polarization of light. The main difficulty is to ensure interaction of individual photons, which requires optical media with extremely high nonlinearity. For this purpose, it is possible to use the effects of electromagnetically induced transparency or interaction of atoms with photons in a microwave cavity.

It was demonstrated in 2001 that quantum computations can be implemented on the basis of single-photon sources, as well as detectors and linear optical schemes with beam splitters and interfering single photons (Knill, 2001).

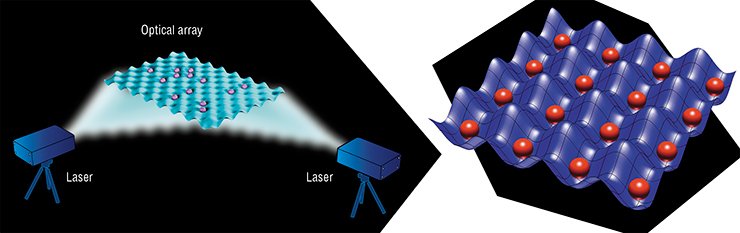

For capturing and confining neutral atoms, it is possible to use a two-dimensional optical array: standing waves generated by beams of two lasers form a two-dimensional interference pattern. Credit: NIST

Information from photon qubits can be read out by using silicon single-photon detectors, which ensure a quantum efficiency of 70% at room temperature. The quantum efficiency of superconducting detectors can reach 95%, but they should be cooled down to 100 mK. The performance of superconducting detectors can be drastically increased by using nanowires.

However, the major drawback of quantum computational schemes based on polarization of photons is the high rate of photon losses, which is commensurable with the rate of decoherence in alternative implementations of the quantum computer.

For writing quantum information, it is possible to use hyperfine states of neutral atoms whose lifetime is a few seconds. Long-range interactions between atoms allow two-qubit logical operations to be performed, and the accuracy of measuring the final state of the qubit is close to 100%.

For creating a quantum register, it is possible to trap neutral atoms into optical grids formed by standing light waves. The intersection of beams of two lasers generates a standing electromagnetic wave with atoms being attracted to the antinodes of this wave. Thus, spatially ordered structures can be formed from them.

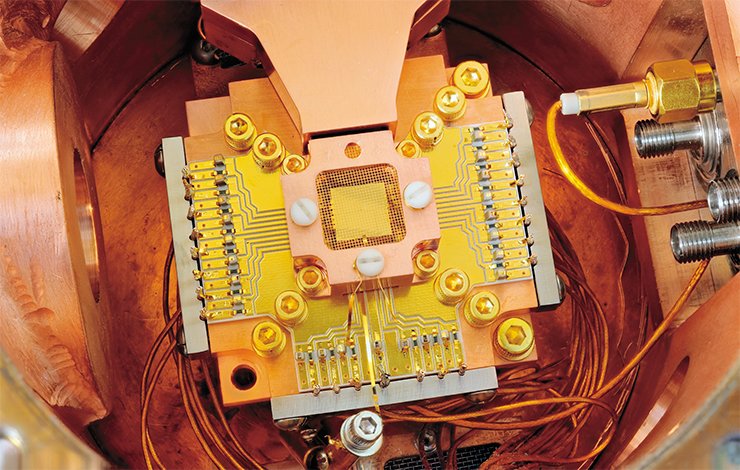

Researchers from the National Institute of Standards and Technology of the USA (NIST) developed a special trap that can confine two beryllium ions located at a distance of 40 µm from each other. The ions are located above a golden plate surrounded by a golden grid and a copper casing for reduction of electrostatic interferences. Credit: Y. Colombe/NIST

In 2010, researchers from the University of Wisconsin-Madison (USA) managed to perform quantum logical operations with cold neutral atoms (Isenhower, 2010).

A similar approach is to use ions cooled down by laser radiation owing to resonant light pressure forces and confined by an electric field.

Quantum registers composed from several qubits were successfully implemented in molecules with the use of nuclear magnetic resonance (NMR). In a magnetic field, the nuclear spins start to precess and become aligned parallel or anti-parallel with respect to the magnetic field direction. These two possible directions correspond to logical states of qubits. In molecules, the precession frequency is different for different atoms. As a result, individual atoms in a molecule can be addressed by using resonant electromagnetic radiation. Simple quantum algorithms were demonstrated in quantum NMR computers on the basis of organic molecules, but scaling of such systems is still impossible.

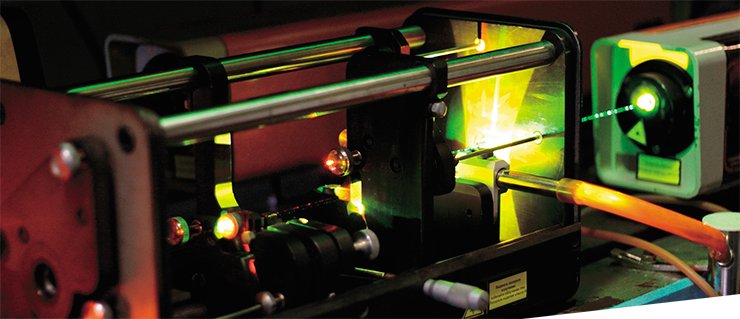

Excitation of the Rydberg atoms is performed by tunable lasers with a pulse repetition frequency of 5 kHz and pulse duration of 20—100 ns

Instead of arrays of neutral atoms confined by laser radiation, it is possible to use arrays of “artificial atoms,” e.g., quantum dots in semiconductors (Valiev, 2001). In this case, the logical states of the qubit are presented by two states of the electron spin in the quantum dot. For creating qubits, it is also possible to use donor atoms of phosphorus in semiconductors or nitrogen vacancies in diamonds. The spin states of such qubits are easily controlled by external electromagnetic fields, the lifetime of the spin state reaches several milliseconds, and spin-spin interactions allow obtaining coherent superpositions of the states and performing operations with two and more qubits.

A popular and fairly promising method of quantum computer implementation is the use of superconductors: in this case, individual qubits can have a mesoscopic character and contain up to ~1010 moving quantum-correlated electrons. The advantage of this approach is the large time of decoherence.

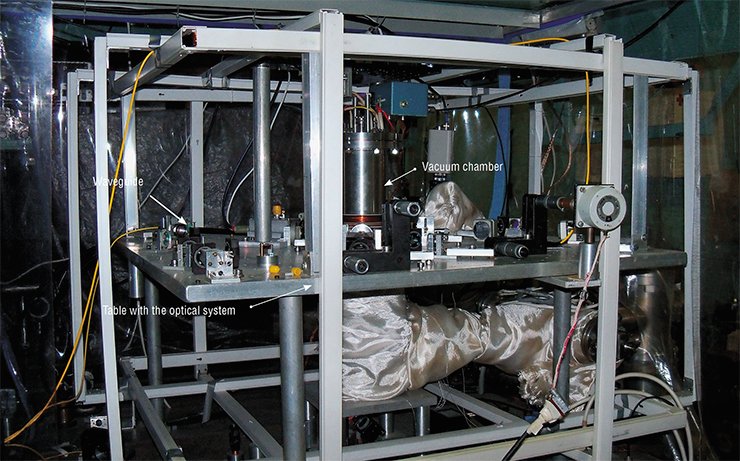

A setup for experiments with cold Rydberg atoms, i. e., atoms whose external electron is in a highly excited state, was developed at the Rzhanov Institute of Semiconductor Physics of the Siberian Branch of the Russian Academy of Sciences. By using this setup, it is possible to control interaction of atoms, which is necessary for them to be used for creating a qubit. The center of the setup is a vacuum chamber, where rubidium atoms are cooled down by laser radiation to temperatures of hundreds of microkelvins and are excited to the Rydberg (highly excited) states. The optical scheme of laser cooling and excitation of atoms is assembled on the table. Rubidium atoms inside the vacuum chamber are captured into a magneto-optical trap formed by three pairs of orthogonal opposing laser beams and two coils generating an inhomogeneous magnetic field. After that, the cold atoms are excited to the Rydberg states, with the principal quantum number n > 20, where they interact with each other at distances of the order of 10 µm owing to the tremendously high values of dipole moments. The Rydberg atoms are registered by the method of selective field ionization at the instant when the Rydberg atom being in this quantum state is ionized by a certain electric field. This method allows one to measure the number of excited atoms and to determine the quantum state of these atoms

Many of these methods are now developed in particular, at the Rzhanov Institute of Semiconductor Physics of the Siberian Branch of the Russian Academy of Sciences, including the study of quantum dots, nitrogen vacancies in diamonds, and interaction of ultracold Rydberg atoms.

Quantum cryptography

The achievements in creating quantum logical elements make it possible to pass to the implementation of quantum informatics principles in practice. Though quantum computational systems potentially possess tremendous capabilities, they will not replace usual computers. Similarly, lasers did not make ordinary sources of light disappear, but provided a solution for new and specific problems.

For example, experiments in quantum optics made it possible to demonstrate fundamental physical phenomena, such as quantum entanglement: the measurement of the state of one quantum object may lead to a change in the state of another quantum object quantum-correlated with the first one. The quantum cryptography protocol described below does not require quantum entanglement: it is based on the impossibility of quantum state copying.

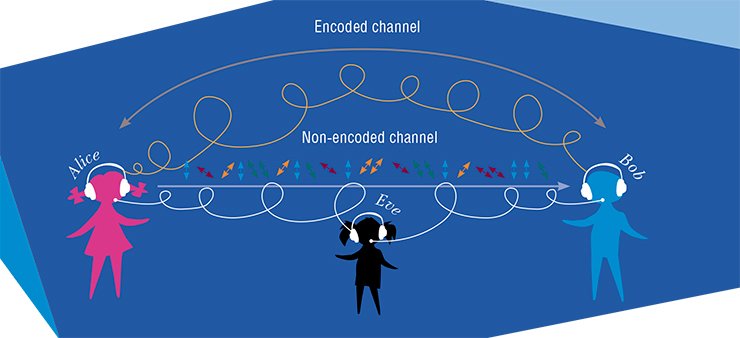

In quantum cryptography, the transmitter (Alice) exchanges information with the receiver (Bob) via two channels: encoded and non-encoded. Information is encoded by directing the polarization of photons transmitted through the encoded channel. The quantum key distribution is transmitted between Bob and Alice through the non-encoded channel. If an eavesdropper (Eve) tries to readout the transmitted information, the message will be irreversibly distorted. Alice and Bob can easily notice it

Cryptography and computer security have special notations for the transmitter, receiver, and interceptor of messages (eavesdropper): Alice, Bob, and Eve, respectively. These notations were first introduced by Ron Rivest in 1978 in his paper that describes the RSA cryptosystem. Sometimes the eavesdropper (man in the middle) is called Mallory, which implies that Mallory is able not only to eavesdrop information, but also transmit forged messages

The transmitter (Alice) encodes information by setting this or that polarization of emitted photons, e.g., by transmitting them through the material that rotates the polarization plane. The vertical and horizontal polarizations mean “1” and “0,” respectively. The receiver (Bob) analyzes the received photon by a device that transmits only vertically polarized particles. Correspondingly, Bob receives “1” if the signal is captured and “0” if there is no signal.

Let Alice also transmit photons polarized in the diagonal direction: at an angle of 45 and 135° (in another basis). In this case, Bob captures the diagonally polarized photon by a vertically oriented analyzer and fails to obtain reliable values of zeroes and unities: there a certain probability of making a mistake, i.e., Bob receives “1” in 50% of cases and “0” in the other 50% of cases. To obtain reliable information, the receiver should know which type of polarization was used by the transmitter for encoding. This information is transferred by Alice to Bob through another (non-encoded) channel) by using this or that protocol.

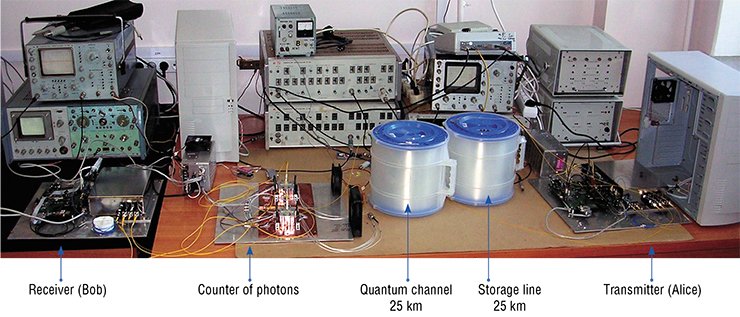

Quantum cryptography setup developed at the Rzhanov Institute of Semiconductor Physics of the Siberian Branch of the Russian Academy of Sciences. The transmitter (Alice) transmits the signal through a quantum channel 25 km long to the receiver (Bob)

If somebody tries to eavesdrop the data exchange channel (interceptor or Eve), she definitely does not know the basis. To remain unnoticed, Eve has to absorb the photon and emit the same light quantum back into the channel. However, she does not know which polarization basis was used (vertical or diagonal): she only received the signal “0” or “1.” Correspondingly, she cannot make an exact copy of the absorbed photon, thus, introducing an additional error into information received by Bob. Owing to this procedure, Alice and Bob notice that somebody tries to intercept their information.

Systems for secret data transfer on the basis of quantum cryptography methods are produced by ID Quantique and MagiQ Technologies. In addition, investigations in this field are performed in the interests of security agencies of some countries. Russian prototypes of quantum cryptography systems were created at the Rzhanov Institute of Semiconductor Physics.

References

Isenhower L., Urban E., Zhang X. L., et al. // Phys. Rev. Let., 2010. V. 104.

Feynman R. P. Engineering and Science/ 1960. P. 22–36.http://www.nobelprize.org/nobel_prizes/physics/laureates/2012/

Feynman R. P. Simulating physics with computers // Int. J. Theor. Phys. 1982. V. 21. P. 467;

Feynman R. P. Quantum mechanical computers // Opt. News. 1985. V. 11. P. 11.

Knill E., Laflamme R., and Milburn G. J. // Nature. 2001. V. 409. P. 46–52.

Ladd T. D., Jelezko F., Laflamme R., et al. // Nature. 2010. V. 464. P. 45.

rabesinger A. (ed.) Nature Physics Insight // Quantum Simulation. 2012. V. 8. No 4.

Nielsen M. A., Chuang I. L. Quantum Computation and Quanum Information. Cambridge, UK: Cambridge University Press. 2010.

Vedral V., Plenio M. B. Basics of Quantum Computation, Progress in Quantum Electronics. Pergamon. 1998. V. 22. P. 1—39.

DiVincenzo D. P. Quantum computation // Science. 1995. V. 270. P. 255.

DiVincenzo D. P. The Physical Implementation of Quantum Computation // Fortschr. Phys. 2000. V. 48. P. 771.

Valiev K.A., Kokin A.A. Kvantovye komp’yutery: nadezhdy i real’nost’. Izhevsk: RKhD. 2001. 352 s.

Manin Yu. I. Vychislimoe i nevychislimoe. M.: Sov. radio, 1980. 128 s.
