Spare Parts for the Human Body

Spare Parts for the Human Body

What can possibly be in common between fancy cookies, the blade of and ice ax and a metal implant? Surprisingly, all of them can be made using the same technology or, more precisely, the same family of modern technologies. In technical literature, these technologies of “3D-printing”, or “free sculpturing” of the complex volume shapes are often referred to as Rapid Prototyping. Today the more general and precise term, “additive manufacturing”, is becoming increasingly common. Additive manufacturing technologies (AM) are applicable to very different materials – from food (dough, chocolate, cheese) to polymers and hard metal alloys. Today these technologies are finding new applications in medicine and biomedicine – in particular, in the manufacturing of individually fit implants

The human body continues to surprise us. Despite its seemingly fragile constitution as compared to the inanimate matter, it consists of rather tough “parts,” capable of withstanding strong external and internal forces. There are certain limits though, and for centuries in legends and fairy tales we have been dreaming of Golem, Tin Man, robots and the Terminator, where the “weak human flesh” is substituted by stone, metals, ceramic and polymers.

THE COST OF A PROTOTYPE
Today the most common manufacturing method for plastics is injection molding, when a molten polymer mass is squeezed into the “3D negative” of the component. Though in this case the processing cost for each component is relatively low, the cost of the manufacturing of the molds is quite high.
In order to reduce the potential costs of potential failures, computer-aided design together with the finite element modeling of the components and assemblies is used at the early stages and prototyping at the final stages of the design.
Large size prototypes are often hand-crafted using gypsum, clay, wood or foamed plastic. For the smaller size objects, computer-guided “3D printing” presents a versatile, fast and cost-effective alternative

Beginning from the end of the 20th century, the dream of substituting the damaged, traumatized and ageing body parts has started to become a reality thanks to the advances in multiple areas of modern science and technology, from biology and psychology to technical design and manufacturing.

Freedom of shape

Modern industrial technologies of additive manufacturing utilizing the latest advances in the material sciences and information technology, when consecutive layers of material are added to a component, received their name in contrast to the classical cutting ones, when the excess of material is removed from the bulk piece. Additive manufacturing methods are very effective in the manufacturing of components with complex shapes, which is reflected in the corresponding Swedish term ‘friforms-teknologi’, or the technology with the freedom of the shapes.

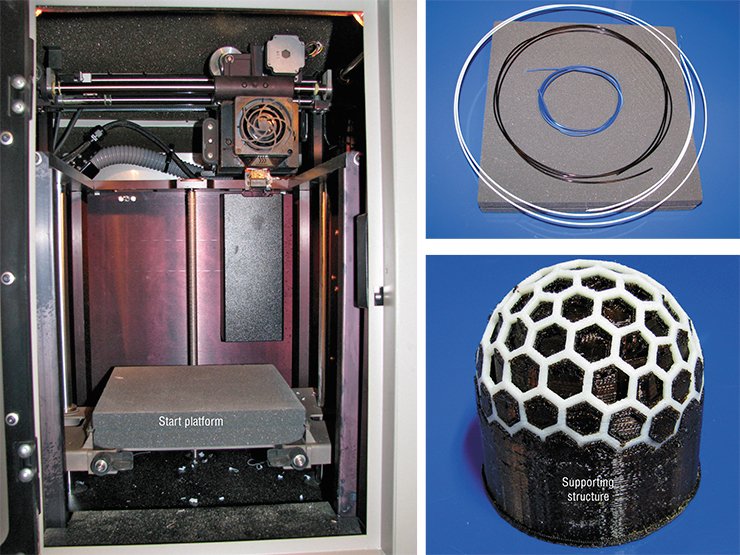

Working (blue and white) and support plastic thread placed over the start platform. PRODIGY Plus by Stratasys is a fused-deposition-modeling (FDM) additive manufacturing device, where a moving nozzle extrudes molten polymers fusing into consecutive layers of a component. A starting platform made of foamed polymer material moves vertically in the hot chamber. The working head deposits molten polymer and when the work in one layer is over, the platform is moved one step down so the machine can start the next layer. To keep the working material layers fixed in place, they need some support. In PRODIGY Plus, two materials are deposited by two joined printing heads to form a manufactured component and supporting “scaffolding.” The main material is a tough thermoplastic polymer, while the support one is a special water-soluble polymer. After the machine has done its job, the support material is dissolved in hot water of a special ultrasonic bath. The shape and structure of the component-to-be are determined by a special file with layer-by-layer instructions sent to the AM machine. To produce such a file the 3-D model coming from the CAD software is “sliced”, like one would slice an orange. Top right: Chinese balls, coming from the PRODIGY Plus machine surrounded by the support material. Below: a computer model showing the balls at different stages of completion

Additive manufacturing starts within the modern software of computer aided design (CAD). Because AM technologies are based on adding the working material in consecutive layers, corresponding 3-dimensional CAD drawing must be “sliced” generating separate “flat” drawings for each of the working layers. Each of these 2-D drawings contains the information where the working and support materials should be placed during manufacturing. A prepared file with the ‘slices’ and additional processing information is sent to the AM machine that can be regarded as a “3-D printer.”

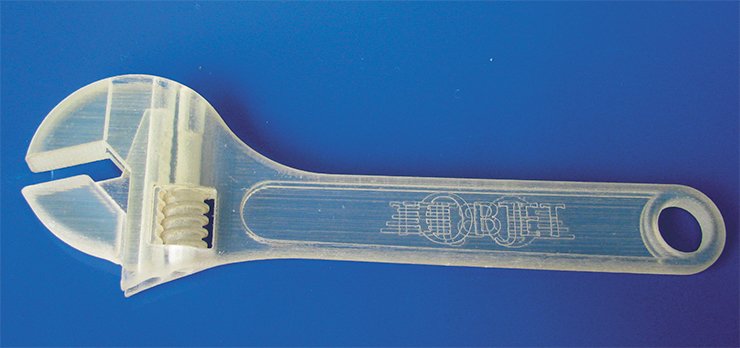

Additive manufacturing allows not only manufacturing of the components with complex shapes but also with integrated movable parts – all in one process. One of the examples – a functioning adjustable wrench manufactured on the 3-D printer OBJET – is shown below. OBJET is a true jet printer using polymerizing chemicals instead of inks. This machine with the resolution of 600×600×1600 dpi (42×42×16 µm) can manufacture components using hard and soft (rubber-like) transparent or colored polymers. The smallest thickness of the layer in this machine is a few times smaller than the thickness of a human hair, which allows manufacturing the components with very small elements

ALL IN ONE

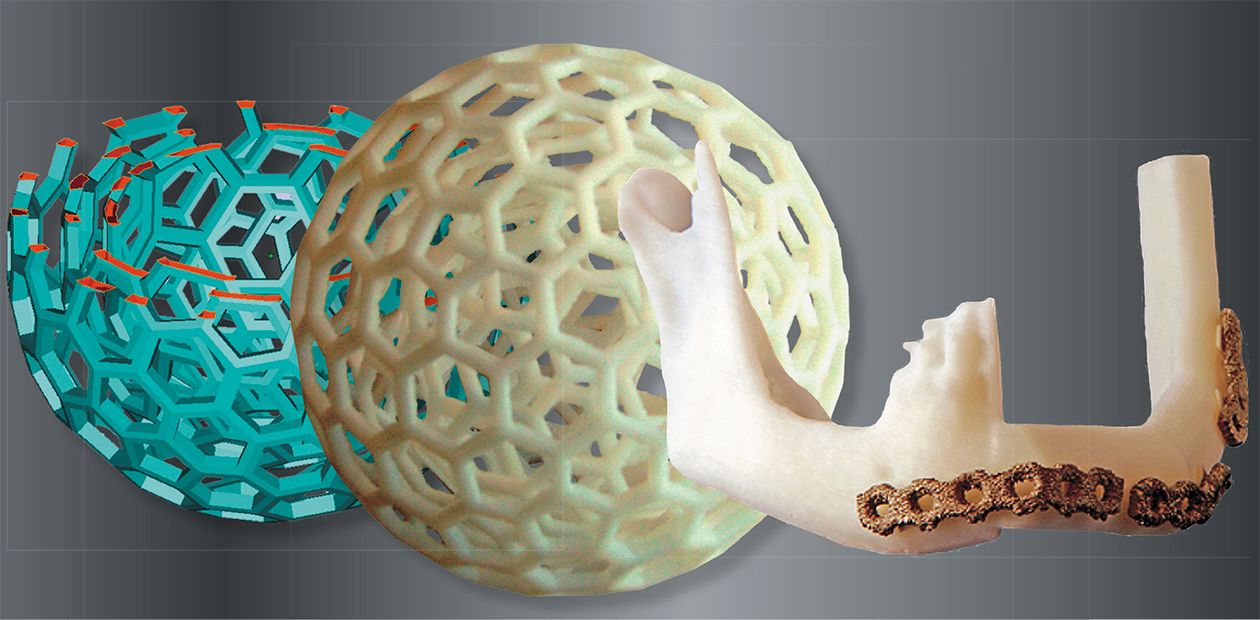

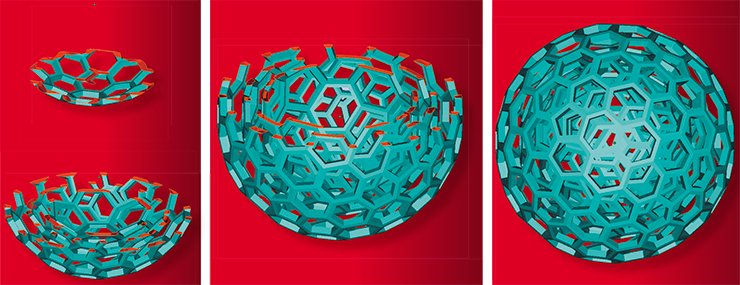

Imagine that you need to make a toy often called “Chinese balls” – a set of spherical net shells, one inside another. Since antiquity Chinese craftsmen have been making such delicate pieces of art from wood, bone and even stone. This complex and delicate job requires extraordinary skill, confidence and concentration. Even a small error, especially at the later stages of the process, can lead to the irreversible damage of the whole piece. Even nowadays, making such pieces using traditional manufacturing technologies is problematic, to say the least. But it is an easy task for additive manufacturing technologies. The 3-D printer simultaneously places elements of all spheres together with the surrounding support layer by layer. After the manufacturing process is finished, the support material is removed

Additive manufacturing devices use a few different principles of operation. The ones working with polymers may use fine granules of polymer molten by laser (e. g. Selective Laser Sintering, or SLS), or work similar to the true jet printers using polymerizing liquid chemicals, or extrude the thermoplastic material through a thin nozzle, like in the FDM machines. However, all AM machines construct the components placing thin layers of the working material one over another thus “printing” in three dimensions.

For example, the working head of PRODIGY plus FDM machine, a distant relative of the common glue gun, moves under computer control in the horizontal plane and squeezes a thin wire of molten polymer placing it over the previous layer of hardened plastic. After finishing work over the current layer, the machine moves the start platform one step down. A high temperature is kept in the working chamber to provide good adhesion of the consecutive layers. And so, layer by layer, the component grows up taking its shape.

In 48 hours

When engineers talk about the “limits of the body constructions,” this is first of all related to its “rigid frame,” the skeleton. Human bones are capable of sustaining significant static and dynamic loads, at the same time providing certain flexibility of the body through numerous joints. However, when the strength limit of the bones is exceeded, they break.

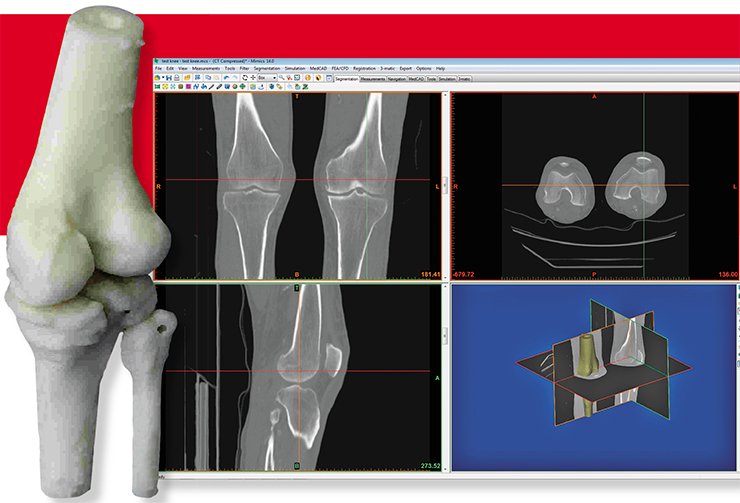

Preparation of the file for the additive manufacturing basing on the CT scan data can take up to one full day. During another day an anatomically precise pre-operative bone model can be manufactured in polymer (left). Shown images were treated using commercial software “Mimics” by Materialise

Usually, to mend the broken bones, it is enough to put them together and immobilize them with the plaster of Paris for a few weeks. In other cases, a surgery is needed. Sometimes the elements of our “rigid frame” are damaged to such an extent that they need partial or full replacement. One of the largest problems in the medical and biomedical implant manufacturing derives from the ultimate diversity of the shapes and sizes of the implants needed, from relatively simple bone fragment fixation plates to very complex ones designed to replace large sections of bones or even complete joints. The dimensions of even similar human bones are highly individual for each person, thus even in the relatively simple surgical cases it is often needed to adjust the shapes and dimensions of the standardized “orthopedic Mechano-kit” during the operation. Thus an operation theatre is becoming a mechanical workshop, with the surgeon cutting and bending metal pieces for better fit while the patient is under full anesthetic.

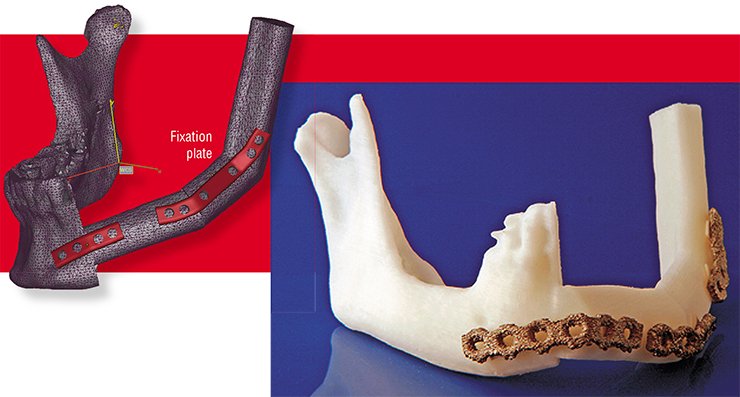

Today seven patients in Sweden have received individually fit implants and fixation plates made in the additive manufacturing laboratory at Mid Sweden University. The pictures above illustrate a complex medical case of the lower jaw bone reconstruction. The missing jaw bone fragments were replaced with sections of the patient’s fibula. Left: the CAD model of the bones and anatomically fitted fixation plates, with the surfaces approximated by a large number of flat polygons to provide faster data processing (so called polygonal approximation). Right: the plastic pre-operative model and the fixation plates made using AM technology from the medically approved aluminum-titanium-vanadium alloy

The situation is even more complicated with more complex implants. In industry there is a common way of lowering the manufacturing costs and bringing products from the “unique” to the “affordable” category. This is achieved though bulk production of the same component, identical in shape and size. However, there is no such “one-for-all” implant, and manufacturing of the “unique-for-each” ones using traditional technologies in many cases is prohibitively expensive.

Today manufacturing of a limited number of the implants with fixed shapes and sizes helps to keep the balance of the implant costs. In many cases there are only ten-twelve standard sizes of the same type implants certified and used in surgery. As a consequence, the surgeon is often forced either to remove some parts of the patient’s bones or to fill the gaps with the “bone cement” to better fit and fix the chosen implant.

It is said that a good surgeon “thinks wit his hands.” Indeed, many surgeons prefer to plan the operation not in front of the computer screen, but using the real models of the bones. Traditionally such models are made out of gypsum or plastic by an artist, basing upon the X-ray images or CT scans. This process is laborious and lengthy, and in many cases the operations cannot be postponed.

The electron beam melting (EBM) machine installed at the Additive Manufacturing Laboratory at Mid Sweden University has been developed and serially manufactured by the Swedish company ARCAM AB. This machine, designed to work with a number of metals and alloys, is fully computerized. The operator can control the process directly, through the touch-screen, or from any remote computer, and get the reports on the current status via e-mail or to the mobile phone. Working powder is taken and leveled over the working area by a horizontal “brush” (a). After that the working area is heated up by de-focused electron beam to the temperatures within 700—800 °C (b). During pre-heating the powder partially sinters. Then the sharp focused beam starts to melt the powder in the parts of the layer where the solid metal will be (c). Metal powder for AM manufacturing should be fine, with relatively round grains having the diameter not larger than the thickness of a single working layer (in this case – ca 100 µm). Such powders are commonly made by gas atomization with consecutive separation on a set of sieves with different mesh sizes

Today additive manufacturing technologies can be efficiently used not only to manufacture the anatomically precise pre-operative bone models, but also the tools for helping surgeons during the operation, for example the plates for precision guiding of the saws and drills.

Preparation of the data starts from the computer filtering of the medical image (most commonly, X-ray or CT image). The result is a precise three-dimensional computer model of the human body, including soft tissues, cartilage and bones. After that, this image is “filtered” using special software to generate a precise 3-D image of the bones alone.

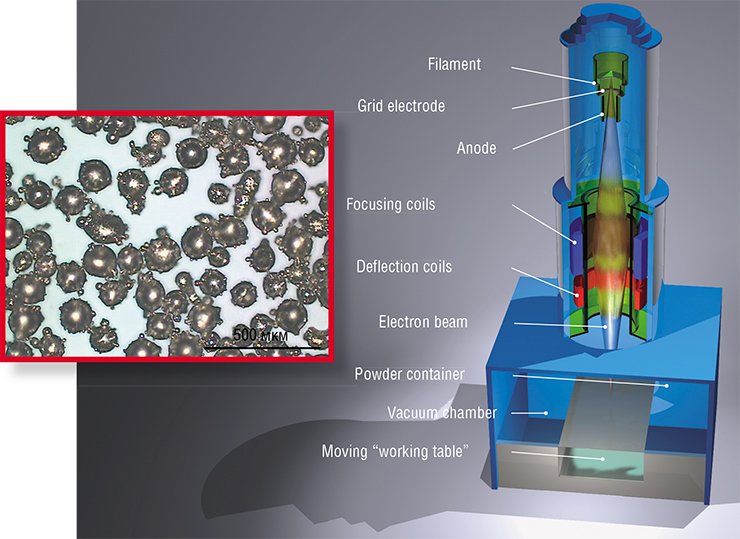

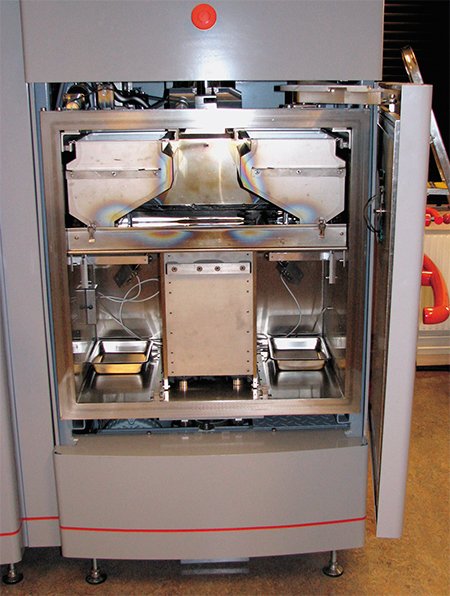

Inside the vacuum chamber of the additive manufacturing machine ARCAM, a high intensity electron beam generated by an electron gun is focused and directed towards the thin layer of the working powder. Because of a very high acceleration voltage, the power of the electron beam reaches few kilowatts. Focused at a very small spot (usually in the order of 0.1 mm), it easily heats the metal powder to the temperatures well in excess of 1000 °C. As a rule, it is enough for the fast melting of even the toughest alloys. The electron beam spot travels over the working surface with the speeds up to a few kilometers per second, and it needs to cover large surface areas. So it can take a few minutes for the machine to complete a single layer, and it can take quite a long time to complete the whole build. During this time the machine is working with minimal or no supervision at all. It can take up to a few days from the moment the machine is loaded until the cooled down components are taken out from the vacuum chamber As the original images have extremely high spatial resolution, models constructed directly from them are very complex and being transferred as they are into the engineering software packages demand extreme computational resources for further processing. Therefore, the models are simplified: all surfaces are represented by a large number of simple flat polygons (such representation is quite common for many design and engineering software packages). At this stage the models can be efficiently handled by the software that can, for example, compute the mechanical properties of the bones or prepare the files for the 3-D printer that can make bone models from the polymer.

 The time needed for the file preparation until it can be sent to the additive manufacturing machine depends on the complexity of the part but as a rule it does not exceed one full day. It takes about one more day to manufacture the plastic bone model. Thus in two day’s time a surgeon will be able to get a precise pre-operative model.

Alloys certified for medical applications melt at high temperatures (titanium-aluminum-vanadium alloy, for example, has a melting temperature about 1650 °C) and extruding them through the nozzle is hardly possible. Instead of that, additive manufacturing machines use computer-guided melting of the thin layers of fine working powder by a high energy laser or an electron beam.

Alloys for medical and biomedical applications are quite special: they must be strong, durable, non-corrosive and biocompatible, e. g. they should not cause any adverse reaction when placed inside the human body. Electron beam melting machines routinely use titanium-aluminum-vanadium (Ti-Al-V) and cobalt-chrome alloys allowed for implant applications in the EU and USA. It commonly takes a few days from receiving the medical imaging data until an individually fit implant can be delivered for a surgery, nearly the same time it needs to prepare a complex surgery. There is an additional bonus: the EBM- implants are perfectly sterilized during the manufacturing process, which takes place in high vacuum at very high temperatures.

Following the path of Nature

With all its advantages, the manufacturing of perfectly fit individual implants solves only one of the problems existing in orthopedics. The implants substituting “damaged parts” should be operating inside the human body, and the task of their perfect functionality and long-term operation without failures has not been solved yet.

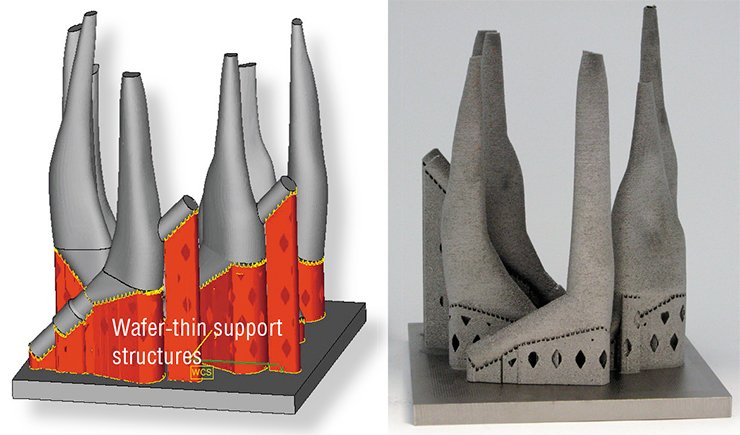

Metal components manufactured in the EBM machine come out “encrusted’ into a mass of semi-sintered powder similar to a fossil in a piece of limestone. The components are cleaned in a special chamber – “sand-blasted” by the same working powder they were built from, so it is also recovered for further use. Top left: the computer model of six individually fit hip stem implants on the start plate of the EBM machine; Top right: the implants manufactured by the EBM machine from Ti- Al- V alloy according to the above computer model and cleaned from the surrounding semi-sintered powder; Bottom: the hip stem implants with different combinations of solid and 3-D net structures with a solid core in the stems

DIRECTLY FROM VIRTUAL REALITY
The possibility of the structure manipulation in the virtual space connected to the possibility of its fast “transformation” into real components significantly widens the capabilities of reconstructive surgery. Working in a virtual reality it is possible, for example, to separate all fragments of a shattered bone and place them properly together, exactly the same way it should be done during a real operation. Also it is possible to design perfectly fitting fixation plates with the screw holes in exact positions, and even metal elements substituting the missing bone fragments. Based on the results of such design, working files for the additive manufacturing machines can be prepared. As a result, absolutely realistic pre-operative plastic bone models and metal fixation plates and implants that are perfectly conformal to the bone shape are manufactured

One should note that our bones, even these we assume to be solid, have quite a complex structure including solid, meshed and porous sections. But a dominating majority of modern implants are made of solid metal, preventing normal transport of biochemical fluids in the areas adjacent to their surface and thus slowing the process of their integration with the new growing bone.

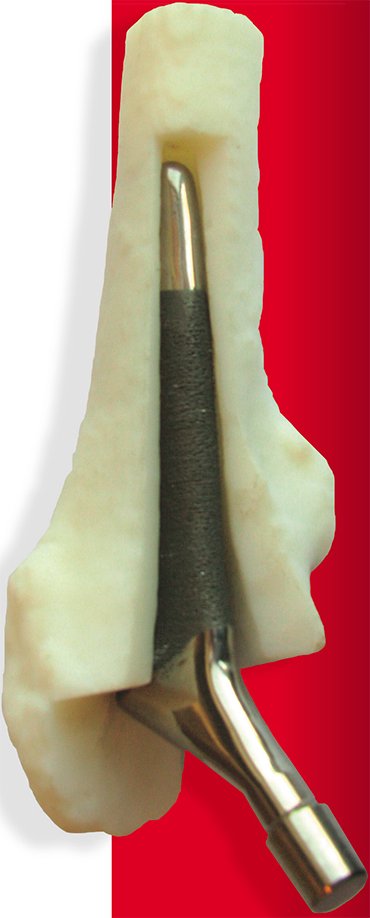

According to the statistics, every minute in Russia there is one spine fracture and each five minutes, one hip fracture. A fractured hip is one of the main problems with the elderly, often leading to disability and death. Nowadays hip replacement operations are quite common, and in many cases they are the only way to save  the patient’s mobility. Individually fit hip stem implants provide patients ith longer periods of active life Also the solid metal implants are much stronger than the bones they are designed to substitute: titanium rod a little thicker than an ordinary pencil is capable to withstand loads equivalent to a heavy truck running over it. None of the human bones can have such load capacity. Such unbalanced properties often facilitate secondary bone fractures near the implant, where the bone is not protected by the metal.

It means that not only the shape but also the structure of a metal implant should mimick the human bones, this including solid, mesh and porous sections. Using traditional ways of manufacturing, it is almost impossible to make the structures with integrated solid and meshed sections. Additive manufacturing technologies can achieve this in the same manufacturing process.

New growing bones penetrate into the light 3-dimensional mesh structure integrated with the solid part of the implant. Such reinforced interface between the natural bone and the metal of implant is much stronger than in other cases.

As mentioned above, the excess strength of the metal structures substituting natural bones could present a problem. It can be solved by replacing solid metal structures with the ones with a solid metal core and a variable density mesh in the outer parts. Varying the geometry of such structures, it is possible to adjust their mechanical properties to the ones of the replaced human bones. So the outline of the outer mesh will perfectly fit the surface of the bone and the inner solid core will provide the implant rigidity.

It is also known that a newly growing bone adheres better to the rougher implant surfaces. Therefore, the traditionally manufactured metal implant surfaces interfacing the bone are additionally roughened. In EBM technology the surface mesh-type and rough surfaces are achieved within the same manufacturing process.

The design of the outlines and structure of the implants today is carried out by the engineering programs that can also calculate the weight, rigidity and other mechanical properties of the construction. Thus it is possible not only to design the implants ideally following the geometry of the bones but mimicking their mechanical properties. In other words, it is possible not only to design a perfectly fitting implant but also the one with a desired functional behavior. For example, it is possible to design hip implants having maximum mechanical strength near the joint and fitting geometry and mechanical properties of the natural bone in the stem part.

Surface matters

The strength and long-term stability of the bone attachment to the implant depends not only on the chemical composition of the implant bulk and surface, but also on the surface micro-geometry. It is understandable, as implanted materials are becoming involved into the processes going in the human body at both the cell and biochemical levels. Thus an ability to correctly adjust the properties of the implant surface is quite important.

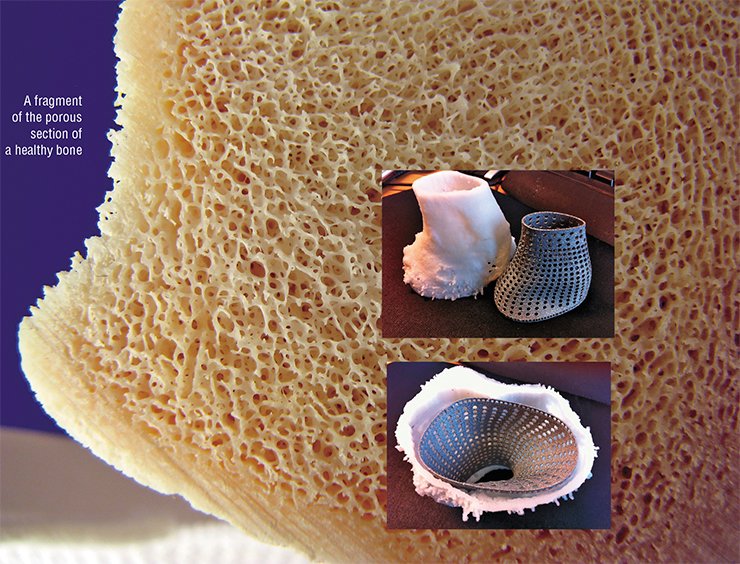

This protective mesh structure made in the EBM machine protects the bone of the real patient from the stress caused by sitting in its hip stem implant. The bones were so weakened by osteoporosis that without the protective cage the loads transferred by the hip implant would have easily destroyed them completely

According to some of the existing data, advantageous conditions for the osteoblast (cells initiating the new bone growth) fixation are provided by the surface with the roughness corresponding to the surface features of about 40 µm (for comparison: the thickness of a human hair is about 10—100 µm). It may also appear that the optimum surface roughness is much smaller, with the features much less than the size of the cells.

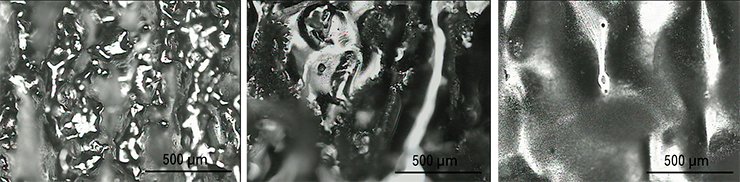

It is possible to change the surface structure of the manufactured implants for example by electrochemical treatment. “Smoothening” of the titanium-aluminum-vanadium implant surface under electrochemical etching with increasing exposure time. Optical microscopy

Additive manufacturing technologies are easily capable of controlling the geometry features from tens centimeters down to fractions of millimeters, e.g. about the thickness of the working powder layer (with ARCAM EBM machine the layer thickness today is 0.07 mm). But as we have pointed out earlier, in many cases surface control down to micro- and nanometer scale is needed

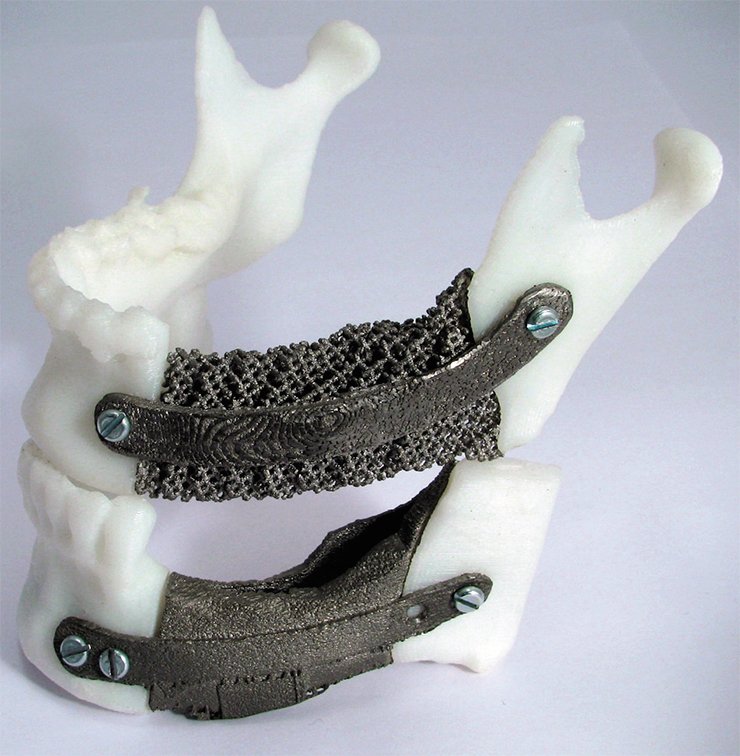

In this clinical case study the missing bones of the patient are substituted by the metal implants with the holes for accommodating future teeth implants. Both solid metal implant (bottom model) and light mesh one with the same outer outline (top model) could be used. Both the fixation plate and substitution implants are made as a single unit in the same technological process from titanium-aluminum-vanadium alloy

The untreated surfaces of the components manufactured in the EBM machine may have certain amount of partly fused powder grains. There is always some risk that being placed in the human body such grains can leave the implant surface.

Today the most promising technologies for the surface post-processing of the implants manufactured using the AM technologies are regarded to be plasma etching (in vacuum or low pressure gas atmosphere) and chemical and electrochemical etching (in solutions). Electrochemical etching helps to remove the potentially loose powder grains from the surface and to “polish out” small elements of the surface micro-landscape.

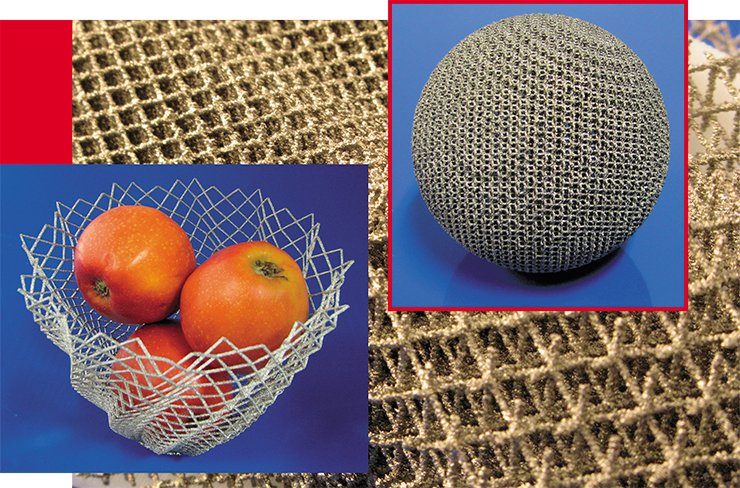

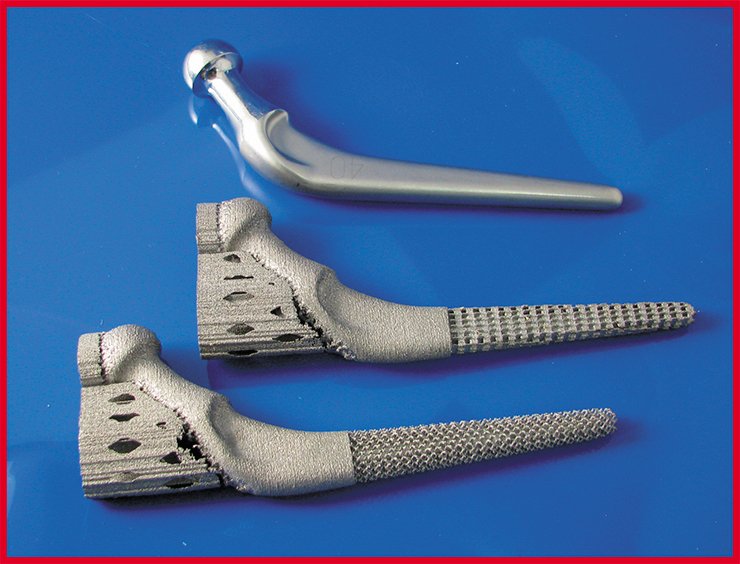

EBM machine makes it possible easy to compound all-metal, 3-D net and porous structures in one component during one and the same manufacturing process. There are two examples of those products: titanium-aluminium-vanadium vase and titanium ball which is like 2 mm thick netlike “shell”

Attachment of the bones to the implant also assumes some chemical bonding with the implant surface. Thus changing the chemical composition of the implant surface it is possible to facilitate better bone attachment to the implant.

Chemical and electrochemical methods are also capable of an implant surface modification. For example, it is possible to oxidize the surface of implants, or to cover it with the bioactive compositions such as hydroxyapatite, one of the calcium phosphate crystal forms present in natural bone material.

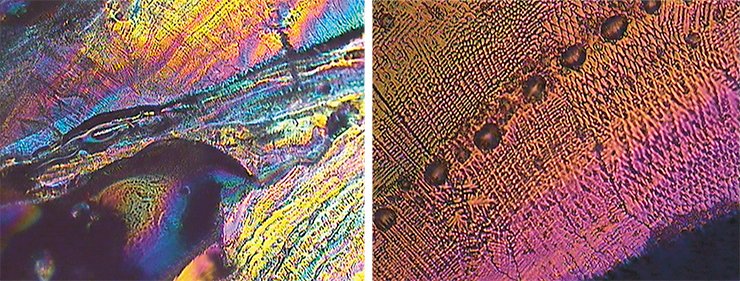

Surface of the iron-based metallic glass after electron beam melting in the optical polarizing microscope at different magnification. Optical polarization microscopy

IMPLANTS FROM GLASS
Modern advances in material science constantly introduce new materials into the AM technology. Recently it became possible to process a new class of materials, so-called “glassy” or “amorphous” alloys, or simply metallic glass. These alloys opened in the early 60s have come all the way from exotic research subjects to promising technological materials. Extremely high hardness, elasticity and high corrosion resistance make them almost perfect candidates for the medical implants manufacturing. Also the iron-based glassy alloys, which are cheaper and more environmentally friendly than the earlier used rare earth metal-based ones, have recently become easily available

Some years ago the emerging computer assisted design technologies have revolutionized the design process. Because of them it became possible to coordinate the work of multiple designers often located in different parts of the world, to easily modify and model the properties of the components – in the virtual world. Together with additive manufacturing these methods result in unprecedented capabilities of the fast materialization of the designer’s ideas.

Using two of these modern technologies together one can not only perform virtual surgery again and again, optimizing the procedures before it is done “for real,” but also to manufacture the plastic bone models, metal implants and fixation plates, and optimized tools for the future operation.

These technologies have not yet become a routine. But most technological aspects of the manufacturing of “spare parts” for the human body have already been successfully resolved. We hope that in the near future additive manufacturing technologies together with other methods of modern engineering can satisfy the demands for the individually fit implants, optimized for both mechanical properties and functionality.
